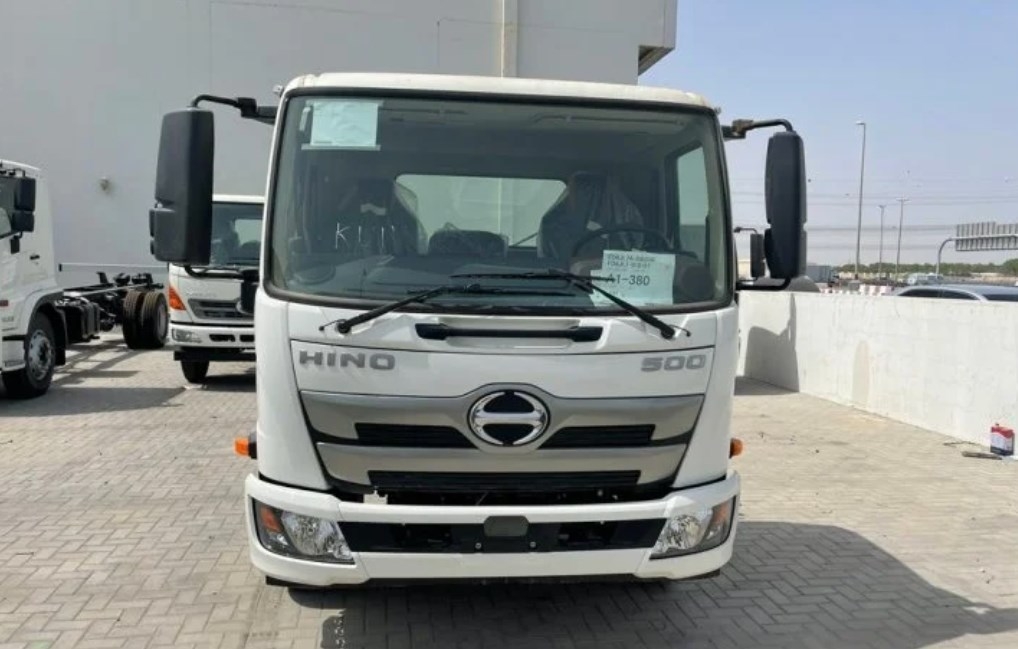

2023 HINO 500 SERIES 1024 - Параллельный импорт легких грузовых автомобилей

Краткие Характеристики

• HINO VEHICLE TECHNICAL SPECIFICATIONS
• HINO: Toyota Group Company;
• AFM Code: HNFD51024MLSC422;
• Katashiki: FD8JL7A-DBCKF;
• Model Description: 500 Series FD 1024 (4x2) Euro 4;
• Model Year: 2022;

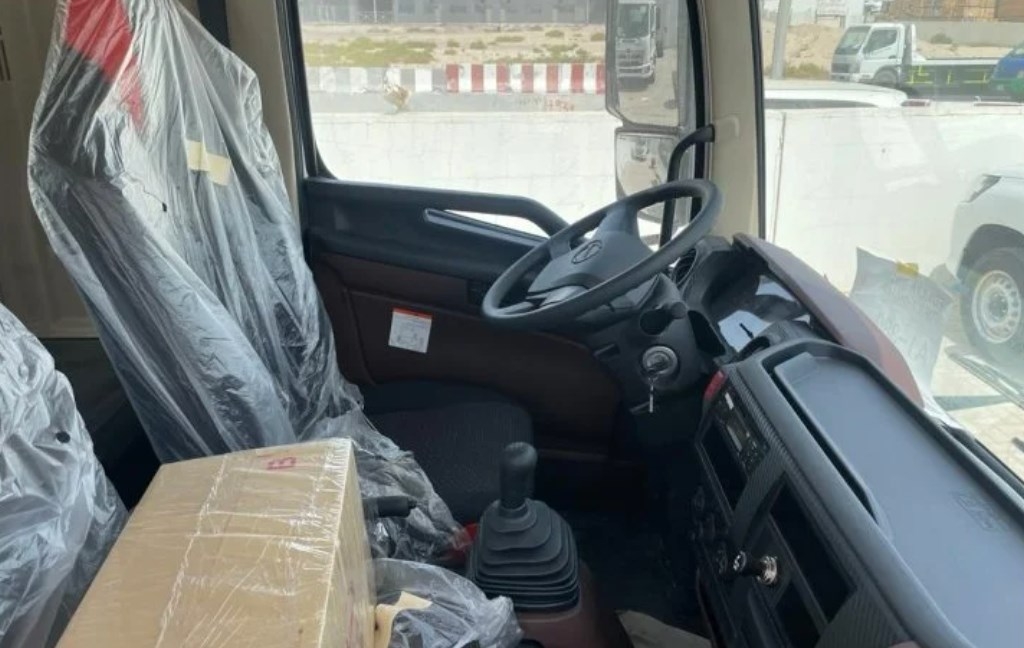

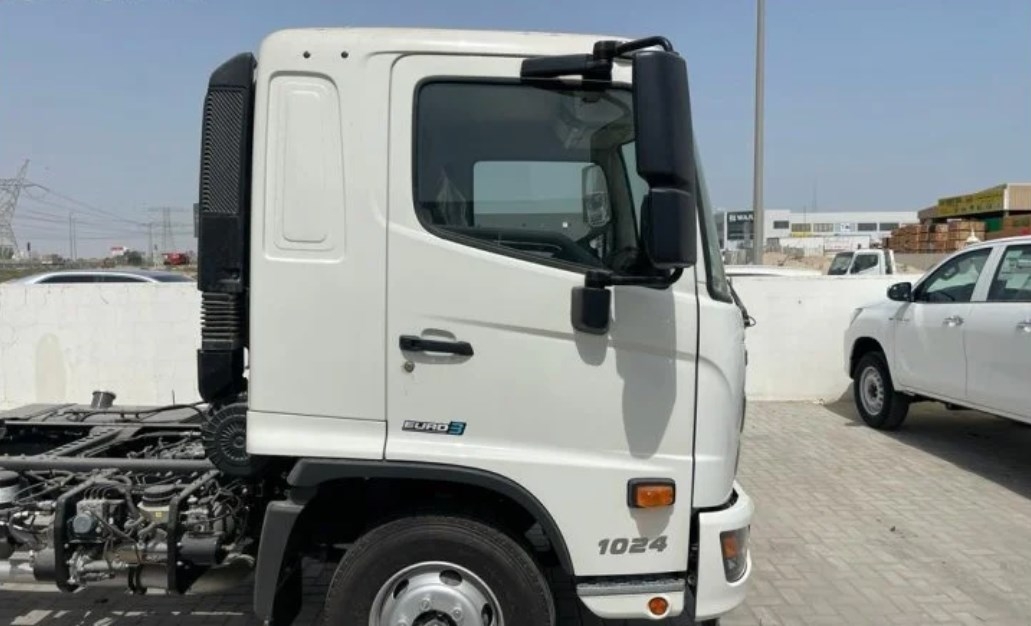

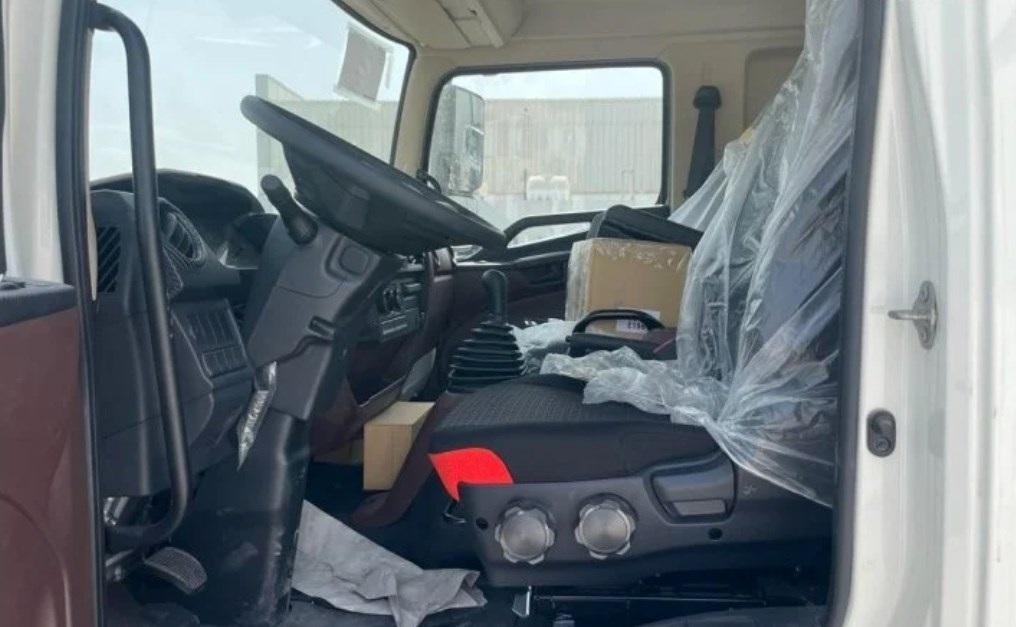

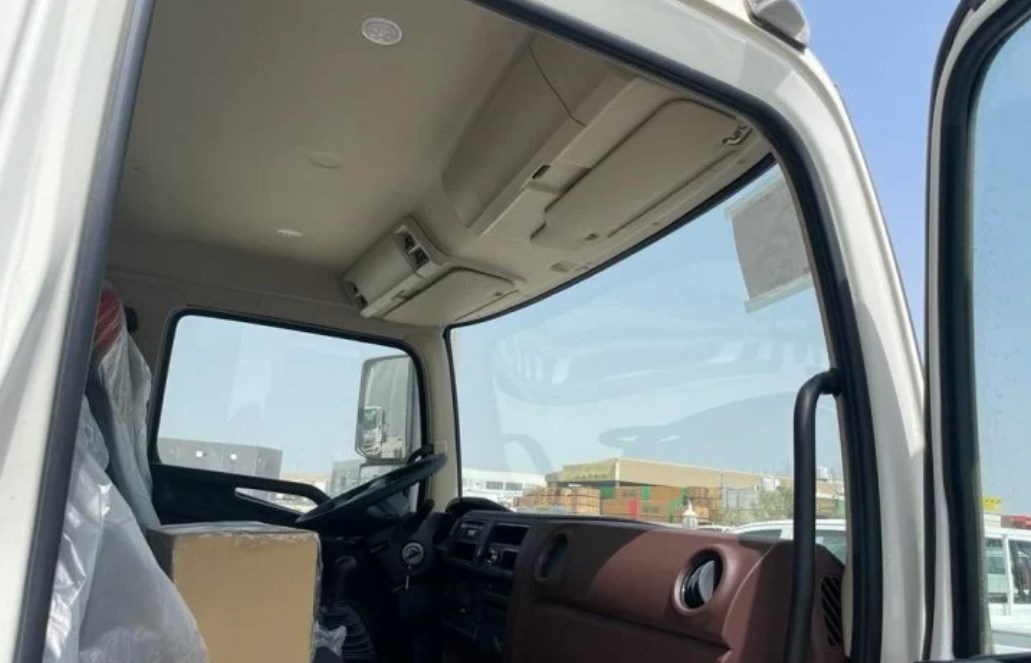

• Cabin Type: Standard Cab;
• Seating Capacity: 1 + 2;
• Country of Origin: Japan;

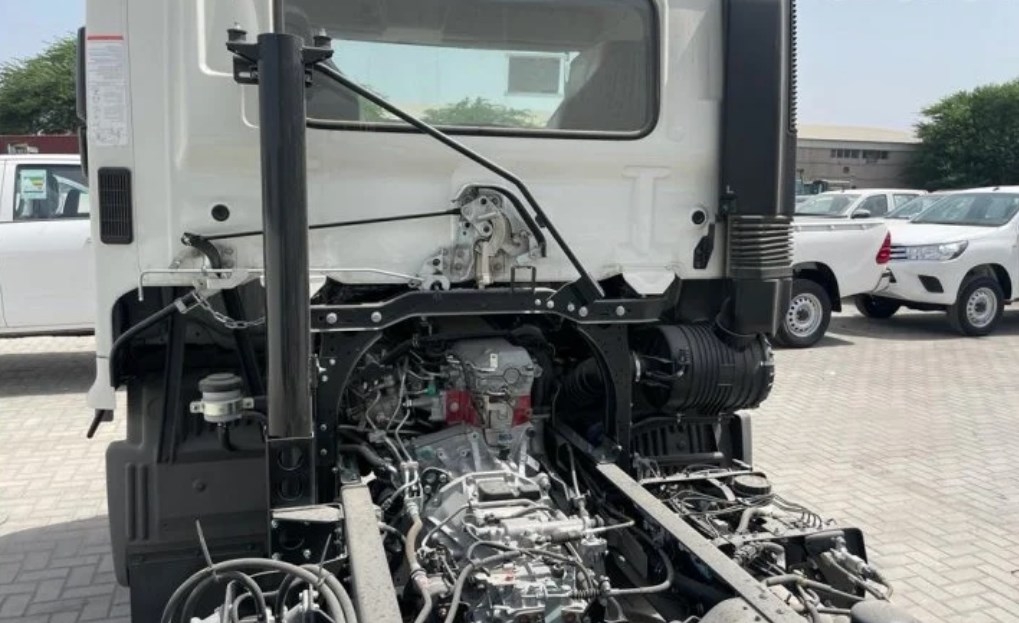

• ENGINE (DIESEL)
• Model, J08E-WF;
• Air Intake, Turbo;
• Euro Emissions, Euro 4;
• Displacement, cc 7684;
• No Cylinders, 6;
• Engine Power, ps 245 PS @ 2,500 RPM;
• Engine Torque, N.m. 726 N.m @ 1,500 RPM;
• WEIGHTS
• Kerb Weight
• Total, kg 3,400;
• Front, kg 2,320;
• Rear, kg 1,080;
• Gross Vehicle Mass
• Total, kg 10,400;
• Front Axle, kg 3,600;
• Rear Axle, kg 7,000;
• Payload on Chassis, kg 7,000;
• GEARBOX
• Model, LX06 ;
• Type, Manual ;
• No of Gears, 6 + 1 ;
• Rear axle Gear ratio, 4.625 ;
• PERFORMANCE
• Curb to Curb, m 7,6;
• Fuel Tank Capacity, l 200;
• Gradeability, deg. 45.8;
• Max. Speed, km/h 110;
• Turning Radius
• Wall to Wall, m 8,3;
• DIMENSIONS
• Wheelbase, mm 4,850;
• Overall Length, mm 8,095;
• Cabin Width, mm 2,190;
• Overall Height, mm 2,925;
• Ground Clearance, mm 220;
• Front Tread, mm 1,800;
• Rear Tread, mm 1,660;
• Rear Chassis Height, mm 885;
• Rear Overhang, mm 2,060;
• Rear Axle Width, mm 2,165;

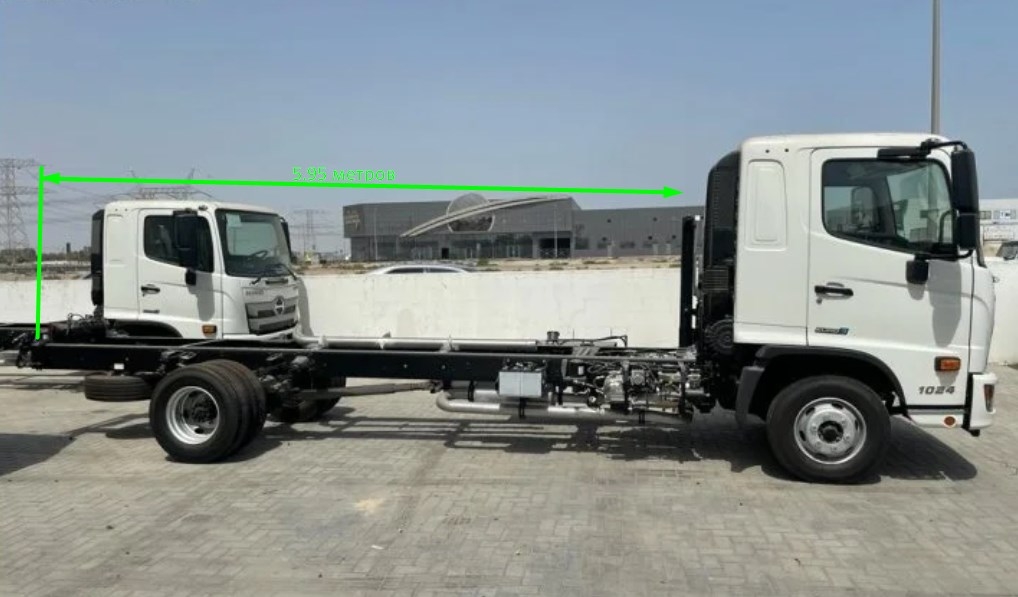

• Cab to Frame end, mm 5,905;
• ADDITIONAL OPTIONS
• Audio wtih Bluetooth, Aux only ;
• Power Windows, Yes ;
• Central Lock, Yes ;
• SRS Airbag, (Driver+Passenger) ;
• Factory fitted Air conditioner

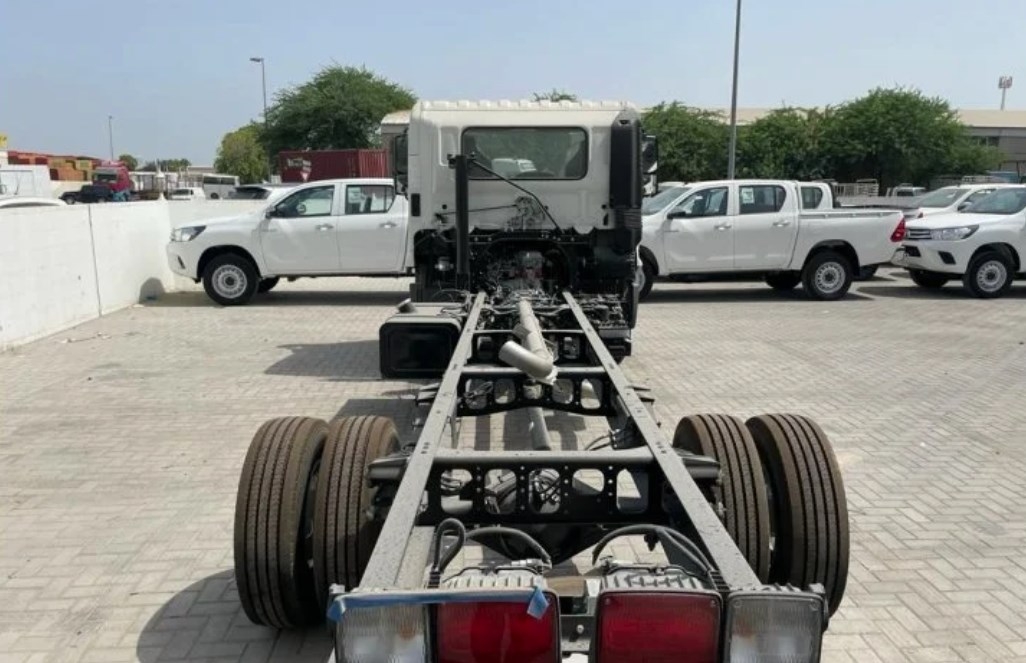

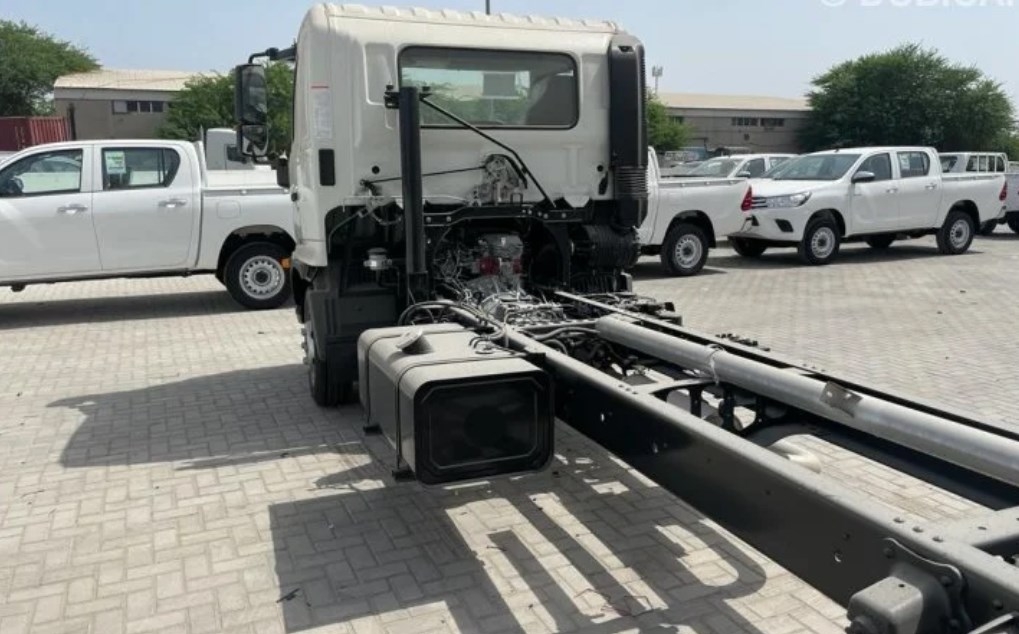

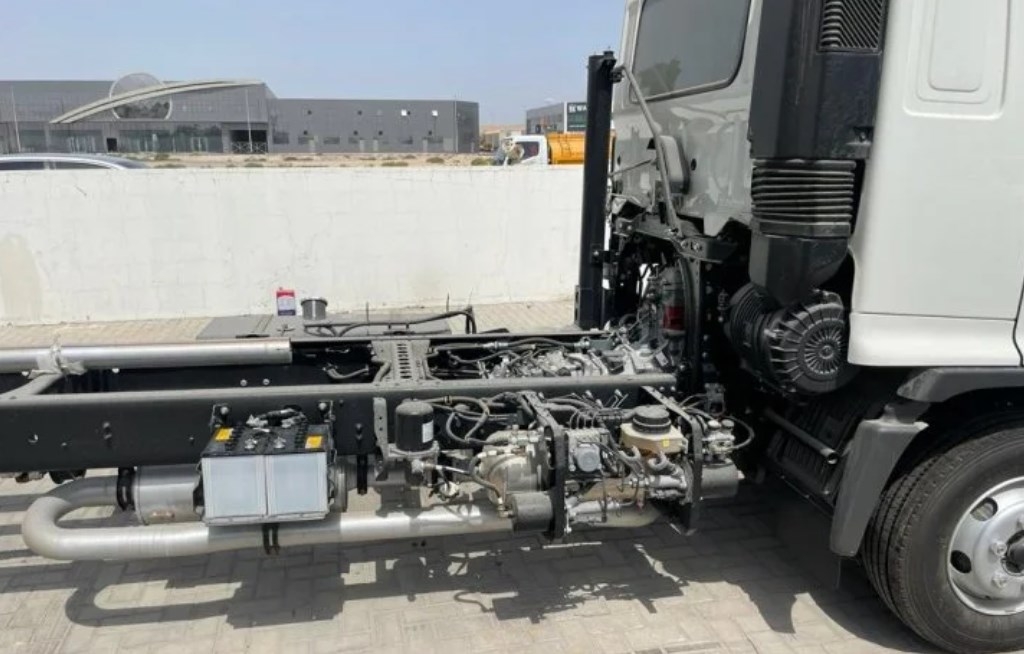

• CHASSIS, BRAKES & TIRES
• Frame Width, mm 820;
• Frame Section, mm 231.6 x 73 x 6.8;
• Service Brakes
• , Type Air over Hydraulic;
• , Front Drum (320x110 mm);
• , Rear Drum (325x145 mm);
• Anti Lock Brakes (ABS), Yes;
• Parking Brake, Mechanical,internal;
• Exhaust Brake, Yes;
• Alternator, 24V - 90A;
• Number of Axles, 2;
• Traction Type, 4 x 2;
• Number of Wheels, 6 + 1 Spare;
• Tire Size, 235/75 R 17.5;
• Tube/Tubeless, Tubeless;
• FIFTH WHEEL
• 5th Wheel Height, mm 0;
• 5th Wheel Capacity, kg 0;
• Kingpin, mm 0;
• Front Fitting Radius, mm 0;
• Lower Fitting Radius, mm 0;
• NOTE: Al-Futtaim Motors reserves the right to alter specifications at any time without prior notice.
